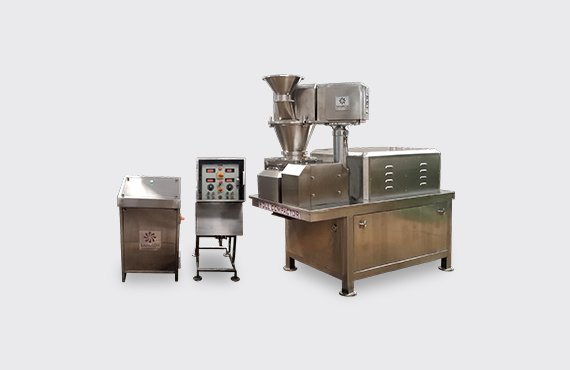

| MODEL | SMRC – 300/300 | |
|---|---|---|
| Output | 100 to 1000 Kg/Hour* | |

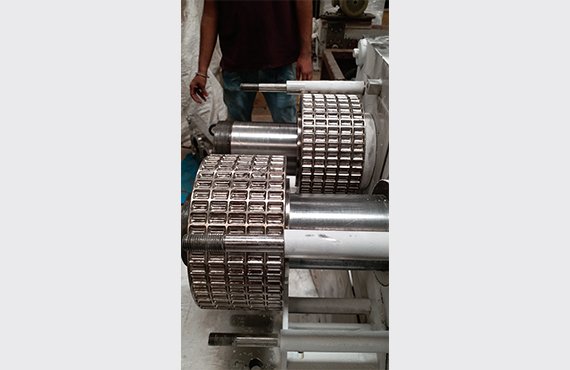

| Roll size | Ø 300mm x 300mm Width | |
| Roll speed (Step pulley drive) 6 to 22 RPM | 6 to 22 RPM | |
| Feed screw speed | 5 to 60 RPM (Through AC Variable Frequency Drive) | |
| Roll drive Motor | 30 HP / 960 RPM / 3 Phase | |
| Feed screw drive motor | 7.5 HP /1440 RPM / 3 Phase | |
Depending upon material characteristic & available room atmosphere only. NOTE : DUE TO CONTINIOUS IMPROVEMENTS IN THE MACHINERIES, SPECIFICATION OF THE MACHINERIES IS SUBJECT TO CHANGE WITHOUT ANY PRIOR NOTICE. Dia : Diameter / W : Width
