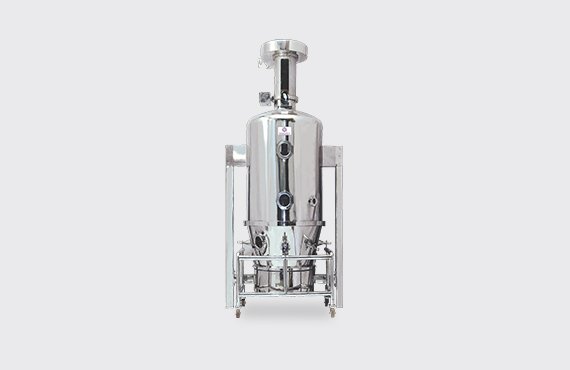

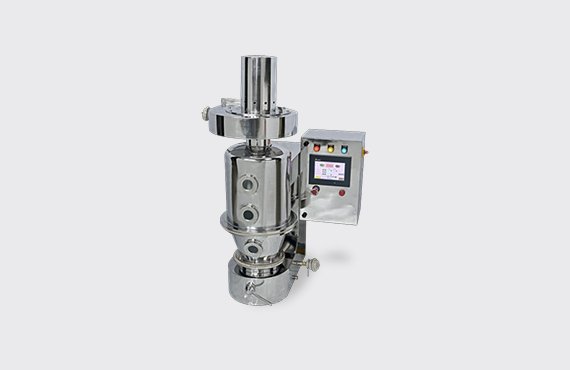

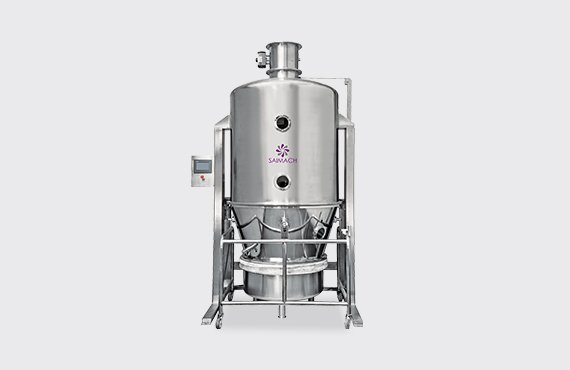

Fluid Bed Dryer

Salient Features:

  • Very versatile process equipment.
  • Fully automatic operation based on PLC ocontrol. (optional)
  • Minimum handling and more hygienic.
  • Top Mounted telescopic cylinder for auto bag shaking. (optional)
  • Clamp type bottom mesh for container.
  • Capacity available from 2.5 kgs. to 300 kgs.
  • MOC SS 304/316/316L
  • cGMP with documentation.

Technical Specifications

MODEL SMFBD SMFBD SMFBD SMFBD SMFBD SMFBD
15 30 60 120 200 300
Container Gross Volume Liters. 46 71 142 280 475 650
Maximum Batch Capacity (0.5bd) Kg. 10 to 15 20 to 30 40 to 60 80 to 120 160 to 200 200 to 300
Blower Motor HP**. 5 7.5 10 20 25 30
Air Flow (CFM) + 10% 430 706 1060 1880 2590 3235
Steam Consumption (kg /hour) 30 50 80 140 216 250
Electric Heater (KW) 20 20 36 60 N.A N.A
Steam Pressure (kg/ cm2 ) 6
Drying temp (°C) 35-80
Power Supply 415 V, ± 10%, 3 Phase, AC
